A well-designed downspout drainage plan prevents water damage, soil erosion, and foundation issues.
Here’s how to plan and execute it effectively:
1. Plan the Drainage System
• Assess Water Flow: Identify where water collects and the best exit points.
• Choose a Drainage Path: Direct water away from the foundation, driveway, and walkways.
• Check Local Codes: Some areas have restrictions on where you can discharge runoff.
• Select Drainage Solutions: Options include splash blocks, underground pipes, dry wells, or rain gardens.
2. Choose the Right Materials
• Downspout Extensions: Directs water farther away from the house.
• Corrugated or PVC Pipes: For underground drainage.
• Catch Basins or Dry Wells: To manage excess water.
• Gravel or Perforated Pipes: Helps with slow drainage in certain areas.
3. Install the Drainage System
Above-Ground Solution
• Attach a downspout extension (flexible or rigid) to carry water at least 5-10 feet away.
• Use a splash block at the end of the extension to prevent erosion.

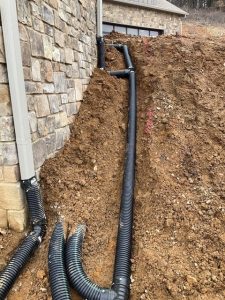

Underground Solution
1. Dig a Trench: 6–12 inches deep, sloped 1 inch per 8 feet for proper flow.
2. Install Drain Pipe: Connect the downspout to a PVC or corrugated pipe.
3. Add a Catch Basin (Optional): Helps collect debris before water enters the pipe.
4. End at a Safe Discharge Point: Such as a dry well, drainage ditch, or rain garden.
5. Cover with Gravel & Soil: Ensures proper drainage and prevents pipe clogging.
4. Test the System:
- Run water through the system to check for leaks or blockages.
- Adjust slopes or connections if needed.
5. Maintain the Drainage System
• Clean gutters and downspouts regularly.
• Check for clogs in underground pipes.
• Ensure discharge points remain clear.
Would you like a custom plan based on your yard’s layout? We can help!
